Sinus Lift Surgical Set, 21 Pieces
This sinus lift surgical set is a 21-piece kit for clinics that already own a periosteal elevator and a ruler. In short, it covers the window, the lift, the graft and the close.
Who this leaner kit suits
Many offices keep a favorite flap elevator on every tray. If that sounds like yours, this version avoids paying twice for one job. Instead, it puts the focus on the steps unique to sinus work.
Lifting the lining wall by wall
Eight sinus lift curettes, from 0 to 7, form the center of the kit. Each one bends at a new angle. So you can move from the window margin to the floor, then on to the far walls.
Making room to see and work
Good access helps every step. For that reason, a Cawood-Minnesota retractor holds the cheek, and a bayonet finger-tip retractor sits near the window. Also, a 4 mm Frazier aspirator clears fluid, while the 4 mm Kerrison rongeur can nibble a sharp edge.
Bone in, flap down
- Collect chips with the bone collector.
- Grind them fine in the bone mill.
- Blend graft in the mixing bowl.
- Then close with the carbide-jawed Crile-Wood or micro needle holder.
Because carbide is harder than plain steel, those jaws hold fine suture firmly. Next, La Grange carbide and curved iris scissors finish the job, while Adson and Gerald forceps hold tissue.
Why not buy each piece alone
Singles from mixed sources rarely match in feel. By contrast, this kit arrives as one order with one finish. Also, the 23-piece version adds only the Molt 9 and a ruler, so the choice is simple.
Looking after the kit
Each item comes non-sterile. Clean and sterilize each sinus lift piece first, and it is then ready for reuse case after case. Intrace sets the specification, and we check every piece in the United States. The stainless steel follows ASTM F899. If a fault shows up, all 21 sinus lift tools have three years against manufacturing defects under normal use. For more choice, see our clinical and institutional dental sets, the complete 23-piece sinus kit or our help page.
Meant for trained dental professionals. Our sterilization page and shipping page explain the rest.

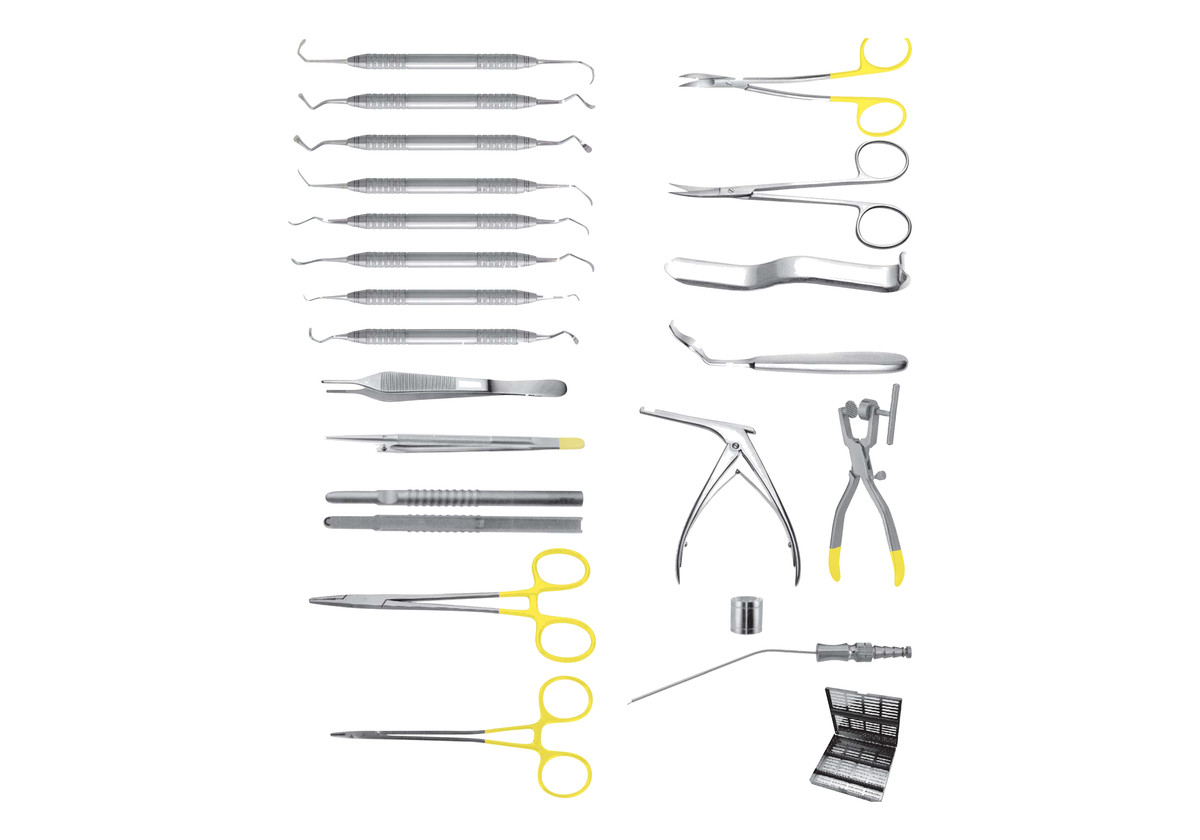

What is in the set
| Instrument | Typical use |
|---|---|
| Sinus lift curettes 0 to 7 (8 pieces) | Membrane elevation |
| Adson tissue forceps 12 cm | Holding tissue |
| Gerald micro forceps, tungsten carbide | Fine tissue handling |
| Bone collector | Gathering bone chips |
| Crile-Wood needle holder 15 cm, tungsten carbide | Suturing |
| Micro needle holder 15 cm, tungsten carbide | Fine suturing |
| La Grange scissors 12 cm, tungsten carbide | Cutting suture |
| Iris scissors 11.5 cm, curved | Trimming tissue |
| Cawood-Minnesota retractor | Cheek retraction |
| Bayonet finger-tip retractor | Flap retraction at the window |
| Kerrison rongeur 4 mm | Trimming bone edges |
| Bone morselizer / bone mill | Milling bone |
| Bone mixing bowl | Mixing graft |
| Frazier aspirator 4 mm | Suction |
| Sterilization cassette | Keeps the set together through cleaning, sterilization and storage |
