Scoville-Haverfield Retractor Hinge Joint Frame only

Description

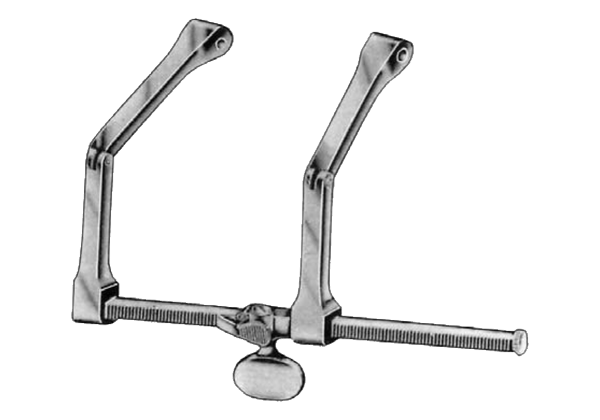

Scoville-Haverfield Retractor Hinge Joint Frame only

This Scoville-Haverfield retractor frame forms the base of a self-retaining spinal retractor. You add blades to suit each case, so one frame covers many wound depths.

Frame and blades

The frame holds the blades apart once the surgeon opens it. As a result, the wound stays open without an assistant pulling. The hinge joint lets the arms follow the wound.

Size

We list the frame at 150 mm. We sell it without blades, so you choose those separately. Contact us to confirm which blades fit your frame.

Use in spine surgery

Surgeons often use Scoville-Haverfield retractors during laminectomy and disc surgery. First, they place the blades against the muscle. Then they open the frame until exposure looks right.

Setting up your system

Start with the frame, then add two or more blade sizes. For instance, a shallow and a deep blade cover most patients. Send us a note on the cases you do, and we can suggest a starter combination.

Caring for your Scoville-Haverfield retractor frame

Open the frame fully before cleaning, so you reach the hinge and joint areas. Then brush them with detergent under running water. Dry completely, lubricate the hinge and sterilize the frame open.

Scoville-Haverfield retractor frame specifications

• Frame 150 mm
• Hinge joint design
• Frame only, no blades included
• Stainless steel

Ordering the frame

Because we stand behind our work, the frame has a three-year warranty covering workmanship defects. It also passes a hand inspection in Atlanta before we ship it. Our FAQ explains payment and delivery. We recognize ASTM F899 as the surgical instrument steel standard. For blades, see the Scoville retractor blades. Also view our wider neurosurgery instruments.

For professional use. Our care and sterilization guide covers how photos differ from real frames and about nickel in steel. The returns page explains how refunds work.
