Dingmann Gag Frame Only

Description

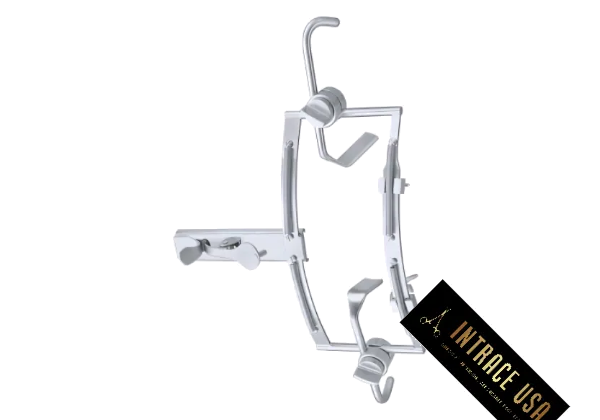

Dingman Mouth Gag (Frame Only)

The Dingman Mouth Gag by Intrace USA provides otolaryngologists and plastic surgeons with a precision-engineered solution for complex intraoral reconstructions. As a local supplier in the metro Atlanta area, we ensure clinicians have immediate access to this specialized frame—often utilized in conjunction with our other ENT surgery instruments—to achieve maximum retraction of the mouth, lips, and cheeks. Because the Dingman design incorporates adjustable lateral retractors directly into the frame, you can achieve a three-dimensional operative field that is far superior to standard ring-style gags.

Furthermore, Intrace USA utilizes premium Japanese and French medical-grade steel to ensure the frame remains perfectly rigid under the high-tension requirements of cleft palate and pharyngeal surgeries. Our professional team in Brookhaven, GA, hand-inspects each unit to guarantee that the sliding lateral retractors and screw-locking mechanisms operate with absolute precision. This process ensures that every instrument meets the strict demands of high-stakes reconstructive surgical environments.

Key Features of the Dingman Mouth Gag

• Integrated Lateral Cheek Retractors: The frame is equipped with two adjustable side arms that retract the cheeks laterally. This eliminates the need for independent cheek retractors and provides the surgeon with a wider, more rectangular operative aperture.
• Suture-Holding Notches: The superior and inferior sections of the frame feature specialized notches designed to secure stay-sutures. This allows the surgeon to maintain tension on mucosal flaps or soft tissue without the need for additional handheld instruments.
• Self-Retaining Stability: Once positioned and locked, the Dingman frame remains completely immobile. This provides a rock-solid platform for the attachment of various tongue blades, freeing the surgical assistant to focus on suction or instrumentation.
• Adjustable Tension Mechanisms: The frame utilizes precision-threaded screws to control the expansion of the jaw and the lateral retractors. This allows for minute adjustments to be made during the procedure as tissue relaxation occurs.
• Premium Material Composition: High-quality Japanese and French medical-grade steel protects the tool against corrosion and structural fatigue. It maintains its structural integrity and polished finish through repeated, high-temperature sterilization cycles.

Surgical Utility of Dingman Frames

Surgeons primarily utilize the Dingman Mouth Gag during cleft palate repairs, uvulopalatopharyngoplasty (UPPP), and complex intraoral tumor excisions. Because the frame provides comprehensive, hands-free retraction of the lips, cheeks, and tongue simultaneously, it is the preferred choice for procedures requiring high-resolution visual access to the hard and soft palate.

Additionally, the stable profile is ideal for maintaining a consistent surgical field when using operating microscopes or high-magnification loupes. This method ensures a safe and predictable operative area during delicate reconstructive work. This specialized equipment is manufactured to meet the highest safety requirements, as outlined in the FDA guidelines on medical device materials.

Reliable Care for Complex Mouth Gags

Clean the instrument with a neutral pH detergent immediately after each use. Pay close attention to the sliding tracks of the lateral retractors, the suture notches, and the adjustment screws. Biological debris often settles in these intricate mechanical areas during surgery.

Consequently, use a specialized soft wire brush to scrub all threads and sliding joints thoroughly before sterilization. We recommend standard steam autoclaving to ensure the tool remains sterile for the next patient. However, avoid using abrasive cleaning pads that could damage the precision-machined threads or compromise the medical-grade steel’s integrity.

Compliance and Quality Standards

Intrace USA manufactures this product in accordance with FDA, CE, and ISO 13485 quality standards. Therefore, we inspect each Dingman Mouth Gag frame before distribution.

We ensure it meets the highest professional requirements for surgical safety and performance. For more information on our quality standards, please visit our FAQs. To view our full range of specialty tools, please visit our ENT surgery instruments category page.

Disclaimer:

We provide images for reference only. This SKU is for the frame only; tongue blades are sold separately. These may include variations in screw style or frame dimensions based on the manufacturing lot. Only trained medical professionals should use these instruments. Because they contain stainless steel, they also contain nickel. Therefore, Intrace USA assumes no liability for allergic reactions. For additional safety data, refer to the FDA guidelines on medical device materials.
